Description:

• Support H.264 and MJPEG dual video stream


• Simultaneously video stream processing


• Mega-Pixel HD CMOS


• The minimum illumination 2 Lux (10pcs IR LED configured, can work in 100% darkness)

• Support two-way audio intercom


• Support video recorded to TF card and mobile phone


• Screenshot by APP


• Video recorded play-back by APP


• Night visibility up to 10 meters


Specifications:

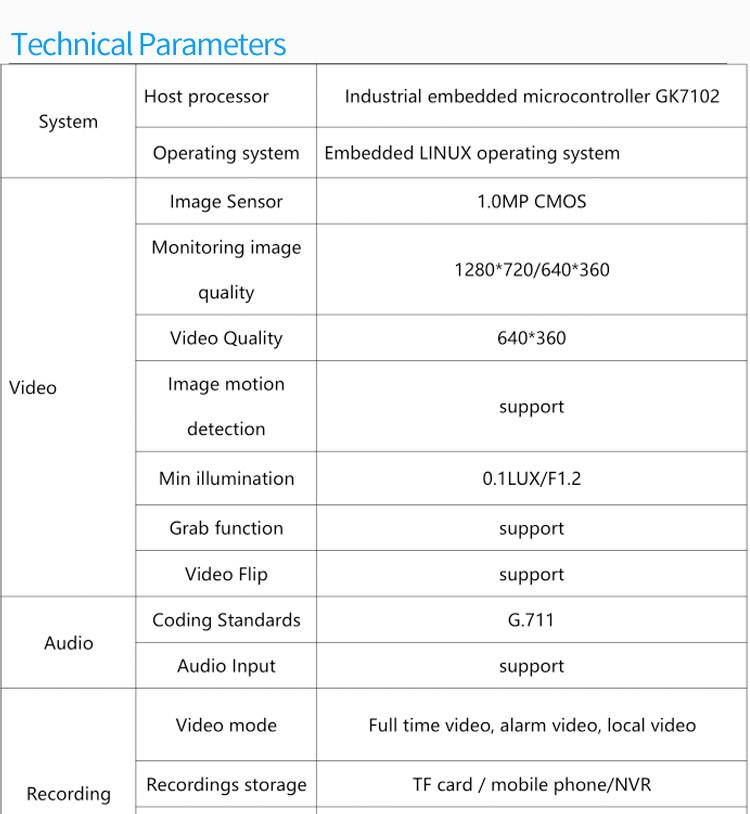

Host processor： Industrial embedded microcontroller GK7102

Operating system：Embedded LINUX operating system

Image Sensor：1.0MP CMOS

Monitoring image quality：1280*720/640*360

Video Quality ：640*360

Image motion detection：support

Min illumination： 0.1LUX/F1.2

Grab function：support

Video Flip：support

Coding Standards：G.711

Audio lnput ：support

Video mode ：Full time video, alarm video, local video

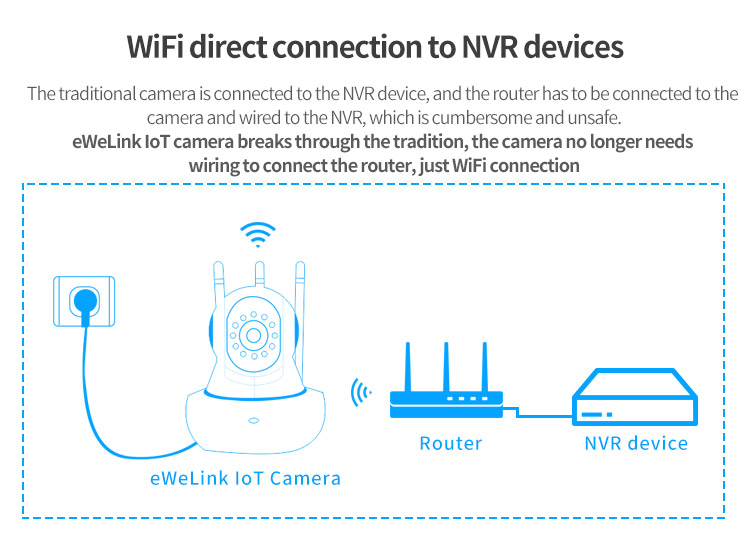

Recordings storage ：TF card/mobile phone/NVR

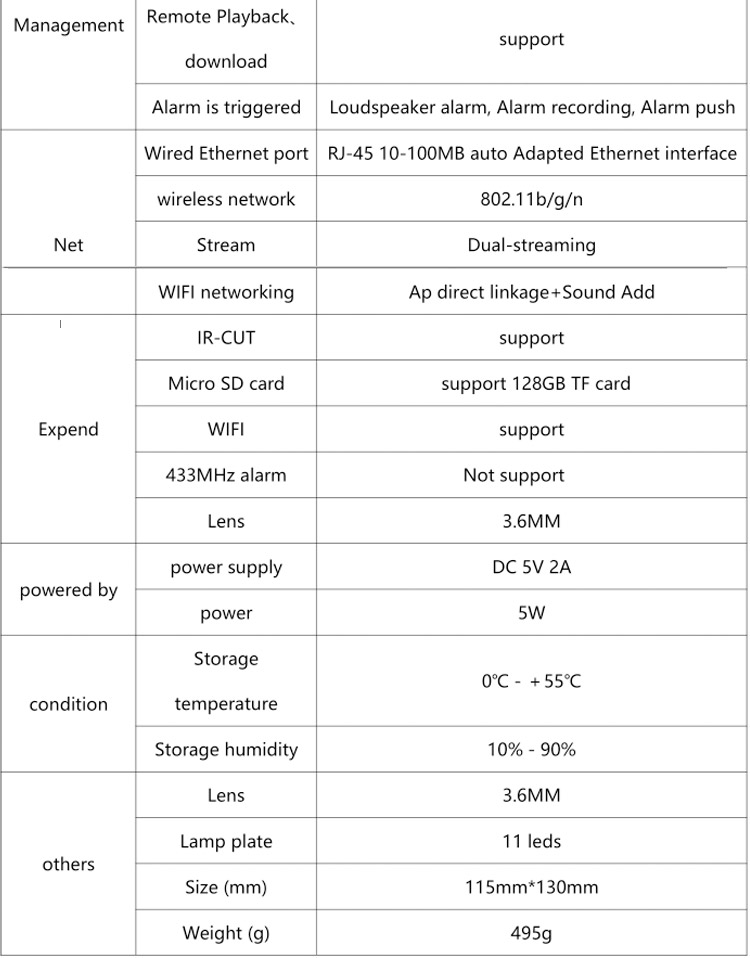

Remote Playback download：support

Alarm is triggered： Loudspeaker alarm, Alarm recording, Alarm push

Wired Ethernet port:RJ-45 10-100MB auto Adapted Ethernet interface

wireless network :802.11b/g/n

Stream:Dual-streaming

WIFI networking :Ap direct linkage+Sound Add

IR-CUT:support

Micro SD card :support 128GB TF card

WIFI:support

433MHz alarm:Not support

Lens:3.6MM

power supply :DC5V2A

power:5W

Storage temperature:0C-+55℃

Storage humidity: 10%-90%

Lens|:3.6MM

Lamp plate:11leds

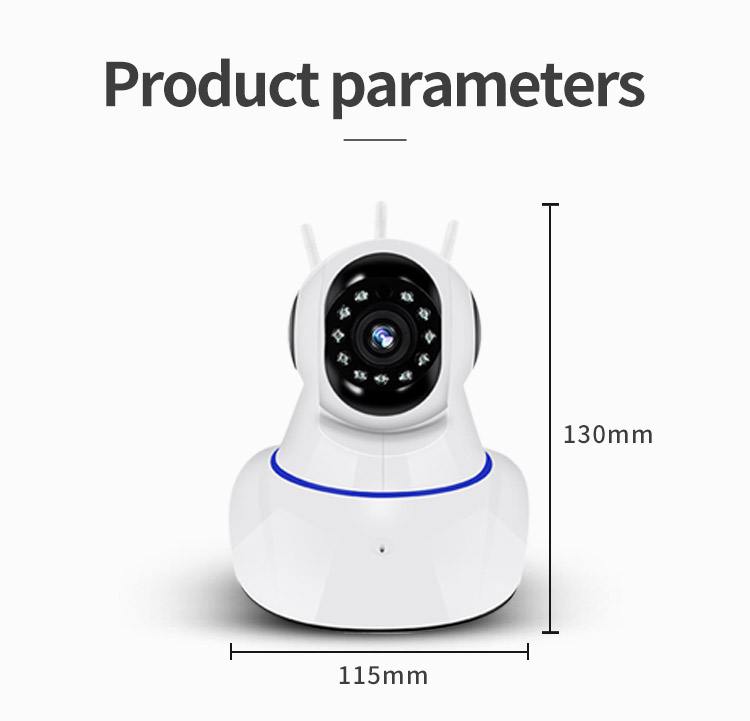

Size(mm):115mm*130mm

Weight(g):495g

Package Inside

1. Camera X1

2.Power cord × 1

3. Product instruction manual X1

4.Mounting bracket X1

Notes:

Power supply DC 5V, No adaptor inside, only an USB cable. (you can use spare adaptor or socket with USB pin)

The audio cue is in English while pairing, suggest users using google translator to help. (pairing is simple, just tap the "+" in eWeLink, and wait the next sign.

If reset it, please use a pin to long press the "RST" button
