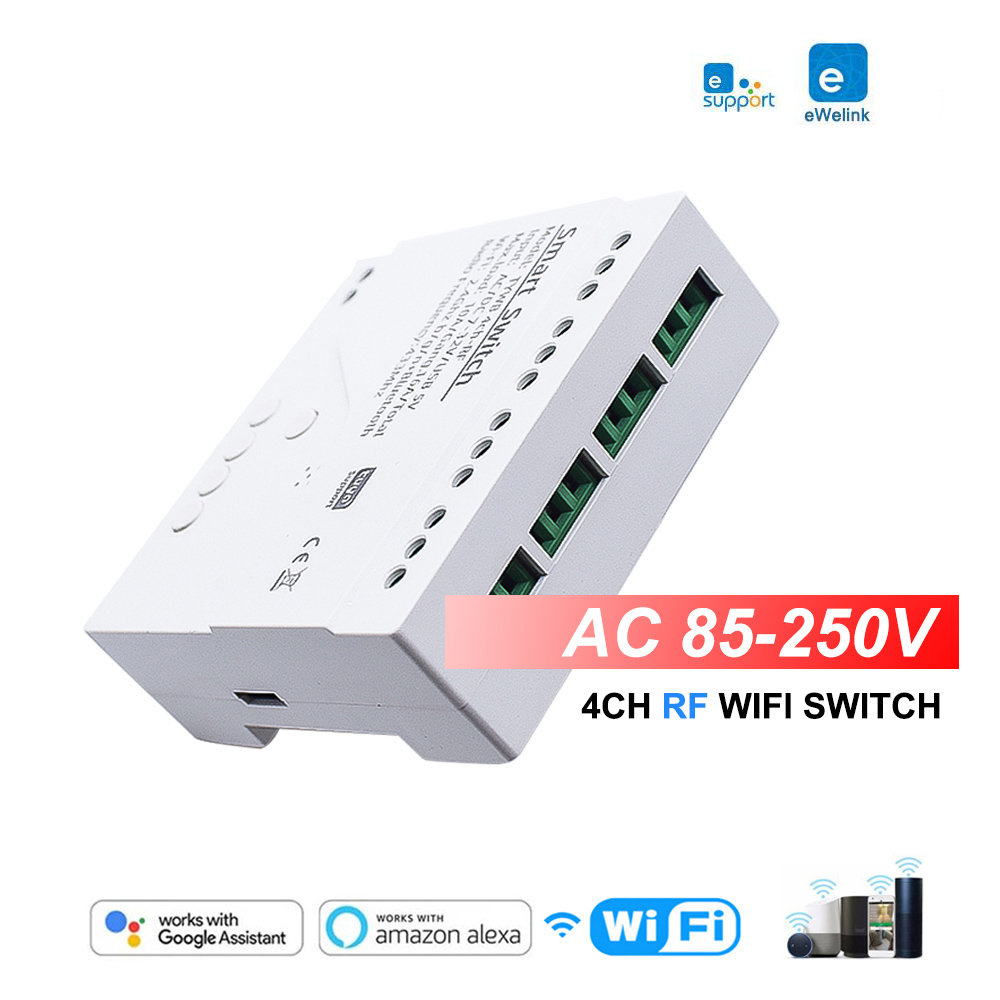

DIY Smart Switch, enjoy your smart life ( APP: eWeLink )
This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP Smart life in order to remotely control connected home appliances or devices.

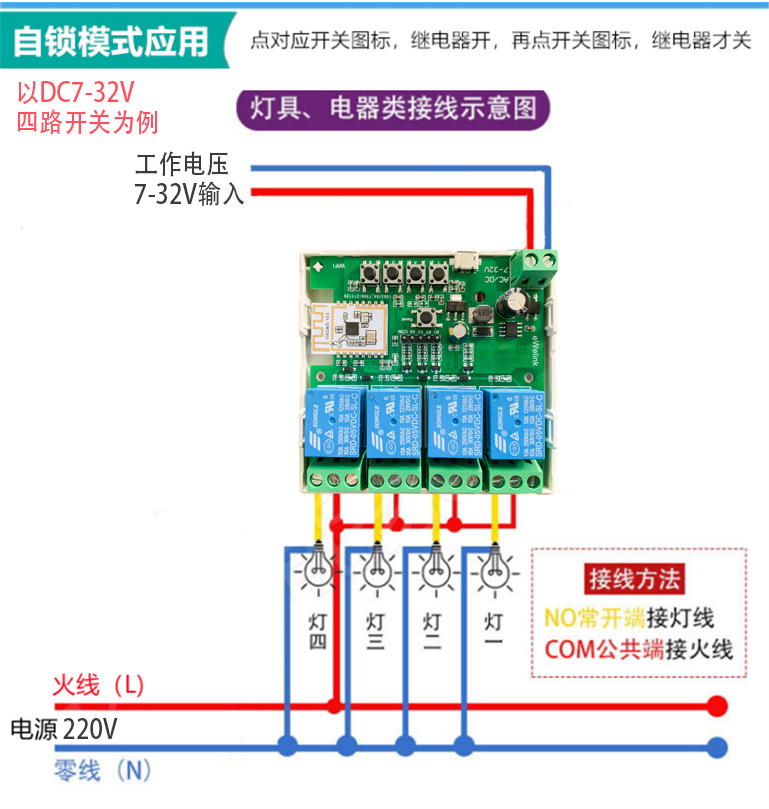

In self-locking mode, customers can remotely turn on/off connected devices immediately.

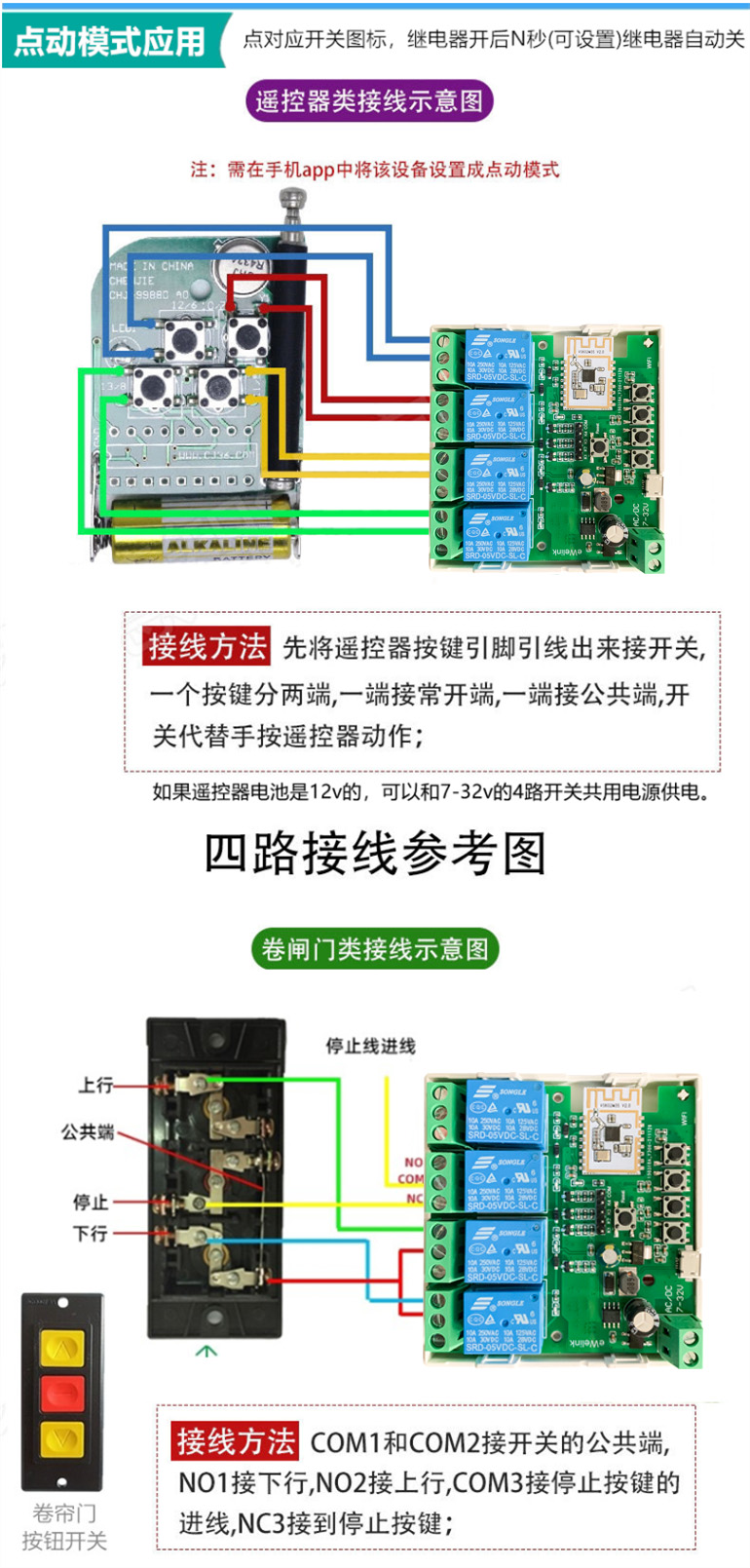

When in inching mode, customers can have two wiring ways to select, and you can set the inching time in APP .
WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.
RF mode , you can control the board with RF2.4G remote controller.
Features:
Input voltage : DC/AC 7-32V AC 85-250V , Micro USB 5V input.
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
Noted :
Your have the correct wifi password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 0.5s , you can set inching time from 1s to 3600s in APP
