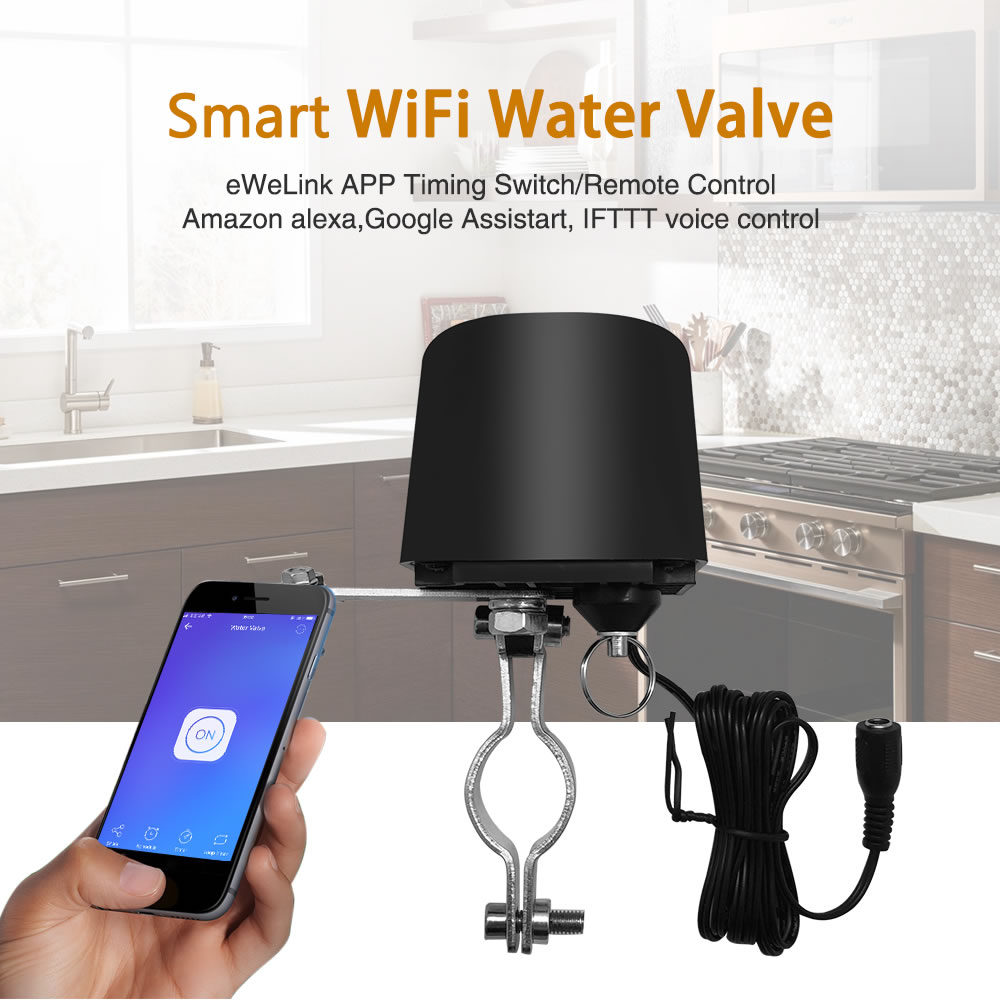

Characteristics:

1)   Micro-computer intelligent control, stable and reliable, one-button WIFI configuration networking;

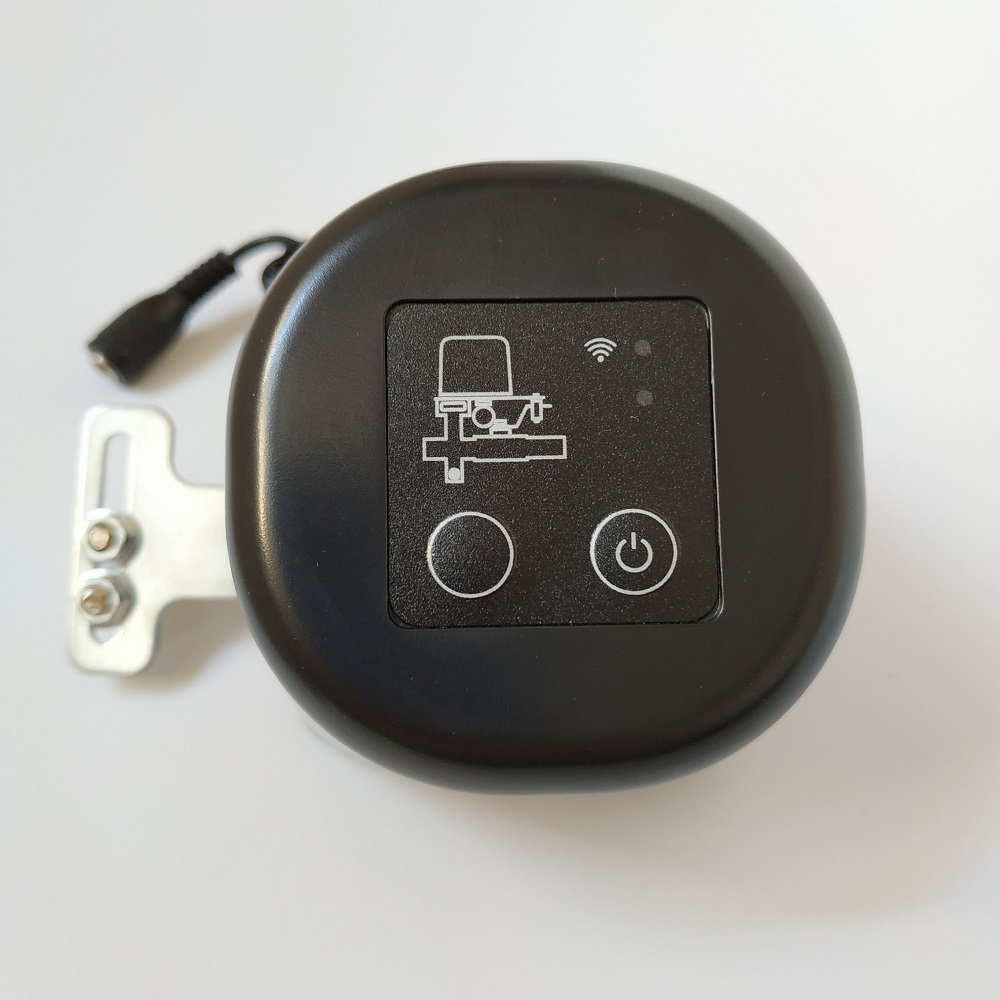

2)   Switch status indication and feedback, support manual control to open and close;

3)   support scene linkage open and close settings, single timing, repeat timing and delay function;

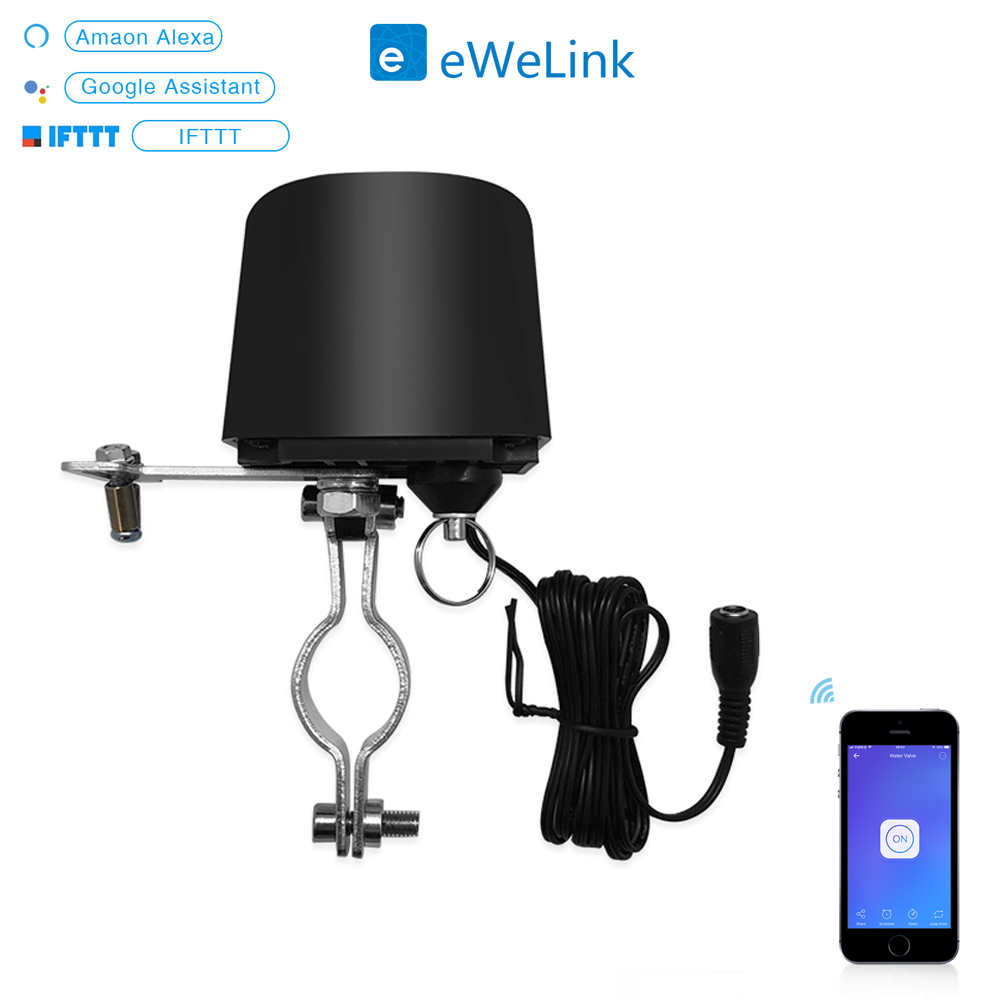

4)   support mobile APP control and intelligent voice control, such as Amazon echo, Google home, NEST, IFTTT, etc.

5)   support the main account to share, permission settings;

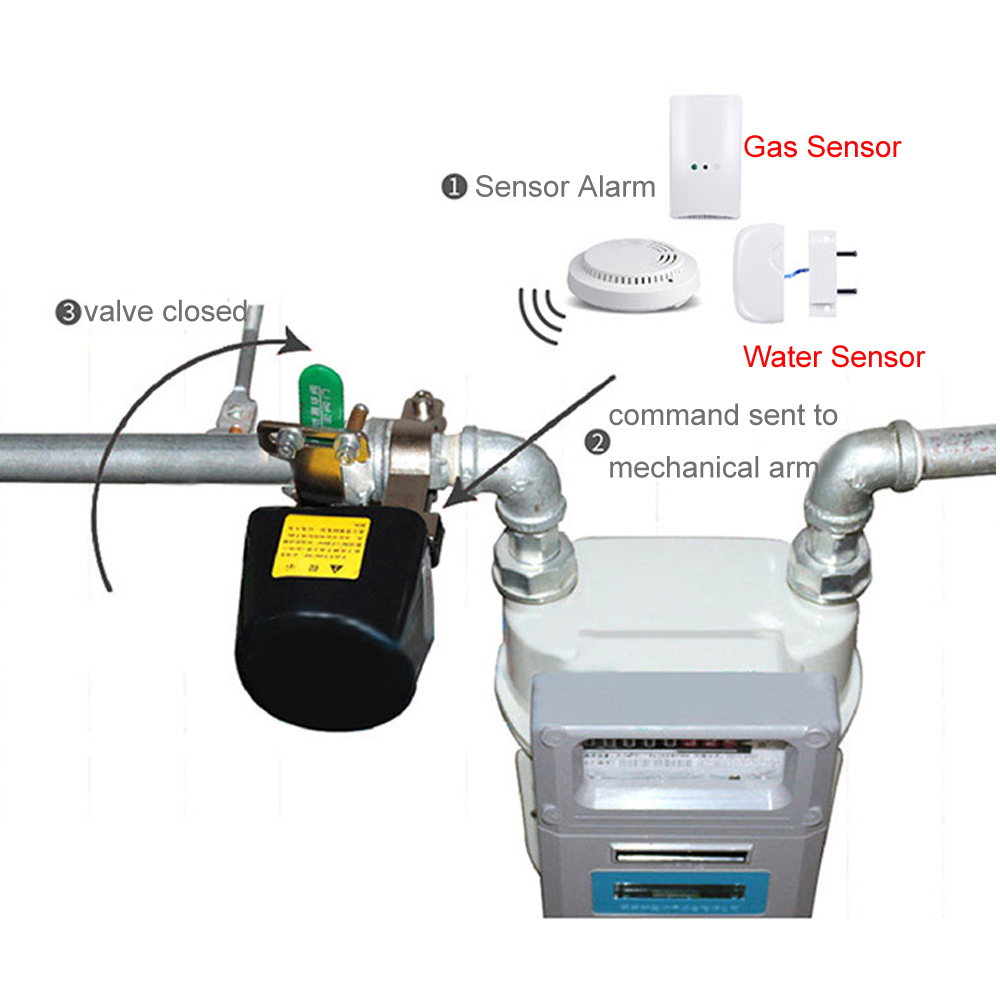

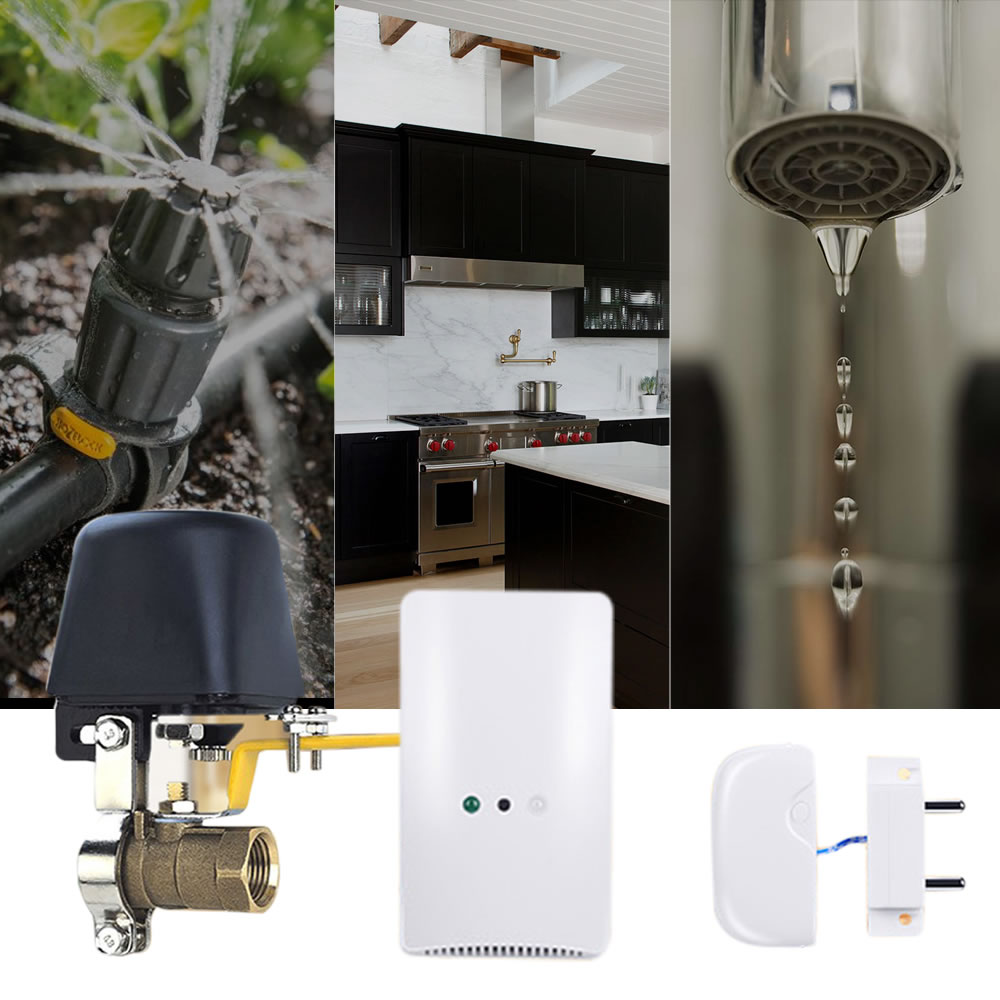

6)   support remote control to open and close, such as: scene panels, gas alarms, water immersion detectors, etc.;

7)   When the mains power fails and calls again, the intelligent solenoid valve is automatically closed.

8)   For water valves, valves, watering, irrigation, etc.;

      Parameters:

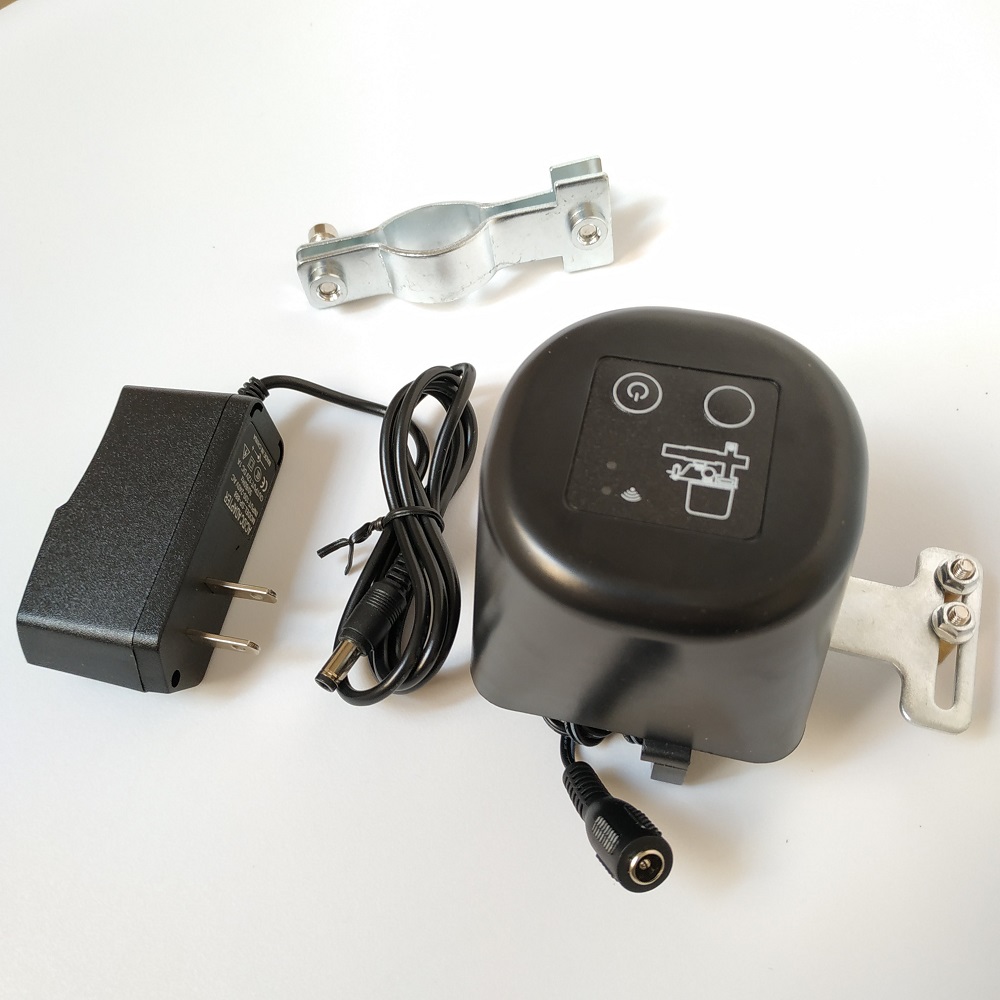

1)   Power adapter: Input AC: 100 ~ 240V Output DC: 12V/1A

2)   the motherboard working voltage: DC12V

3)   motherboard working current: 10~460mA

4)   WiFi frequency: 2.4Ghz minimum receiving sensitivity: -104dbm

5)   RF frequency: 433 MHz learning remote control products: ≤ 25

6)   working environment: temperature: -10oC ~ 70oC relative humidity: 5% ~ 95%

7)   automatic switch solenoid valve time: 6~10 seconds

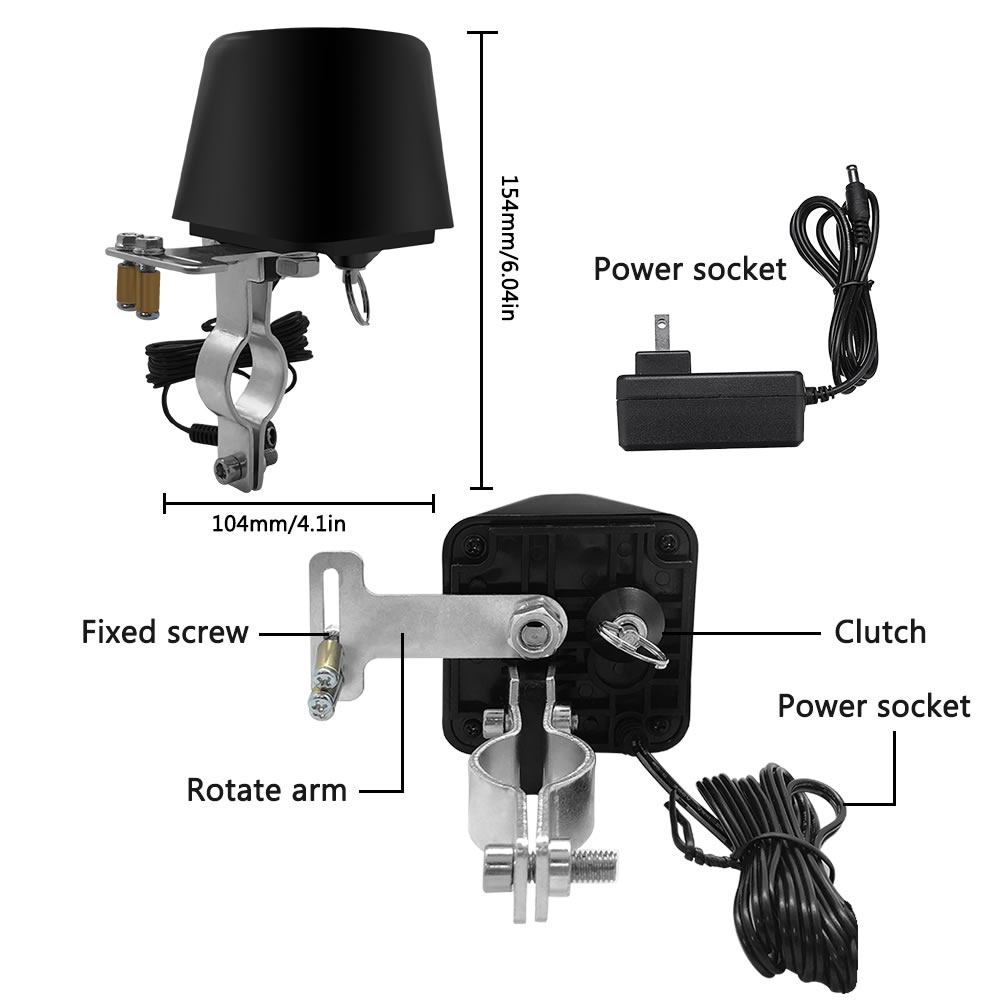

8)   Dimensions: 100 * 90 * 70 mm
